Lava Mae

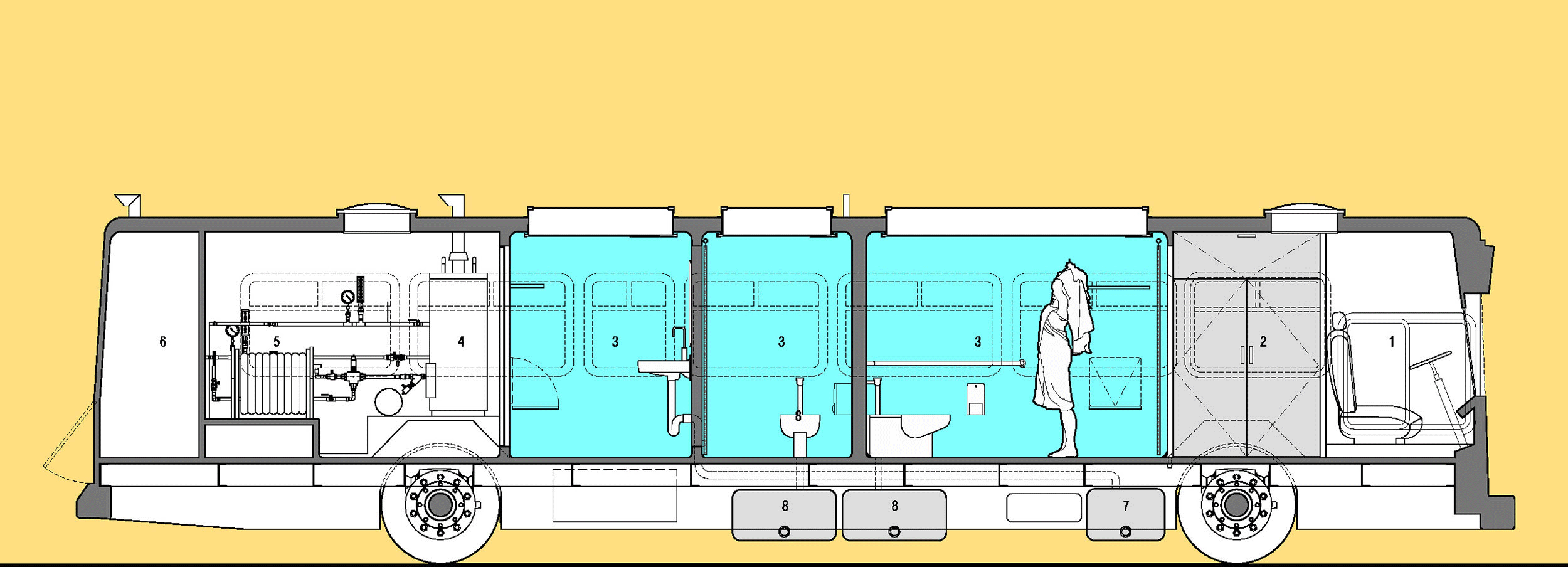

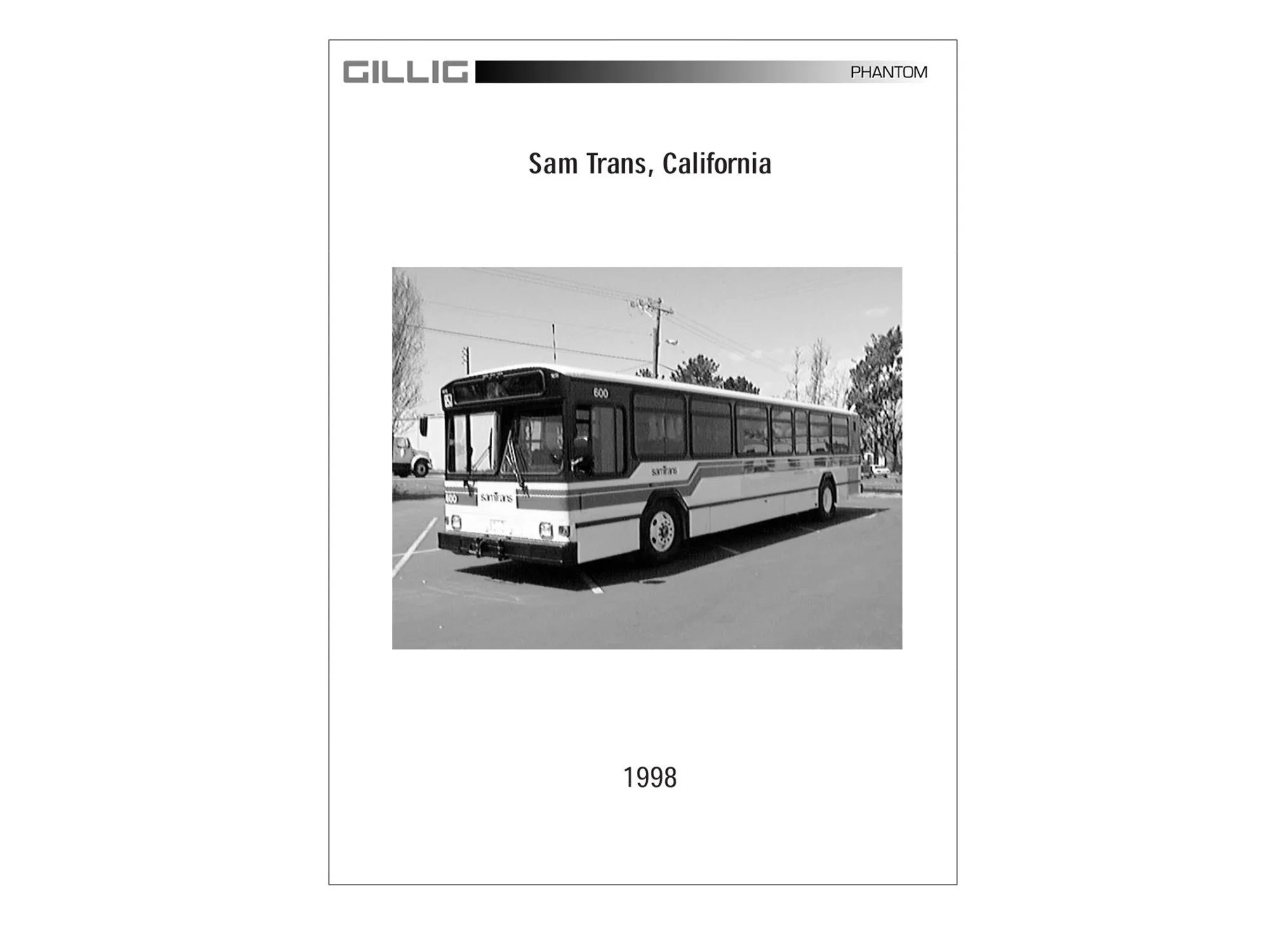

The program for Lava Mae is simple: modify decommissioned municipal buses to accommodate shower facilities without impacting the mobility of the vehicles. The social ambitions of the project are not so simple: create a mobile infrastructure for the underprivileged, offering dignity through access to the fundamental right of bathing.
The modest scale and pure humanitarian intent of the project belies the complexity of both agency approvals and design engineering which we reencountered.
After conducting exhaustive community outreach and engagement, the project was ultimately blessed by all civic and community groups and completed in strict conformance with accessibility codes on an extremely limited budget. Users of Lava Mae have not bathed for extended periods, so we desired to create a space which will enhance the mentally and physically transformative experience of cleansing.
Recognition: AIA San Francisco Social Responsibility Commendation
Featured in: Fast Company, New York Post, Newsweek, Washington Post, Wired, Huffington Post

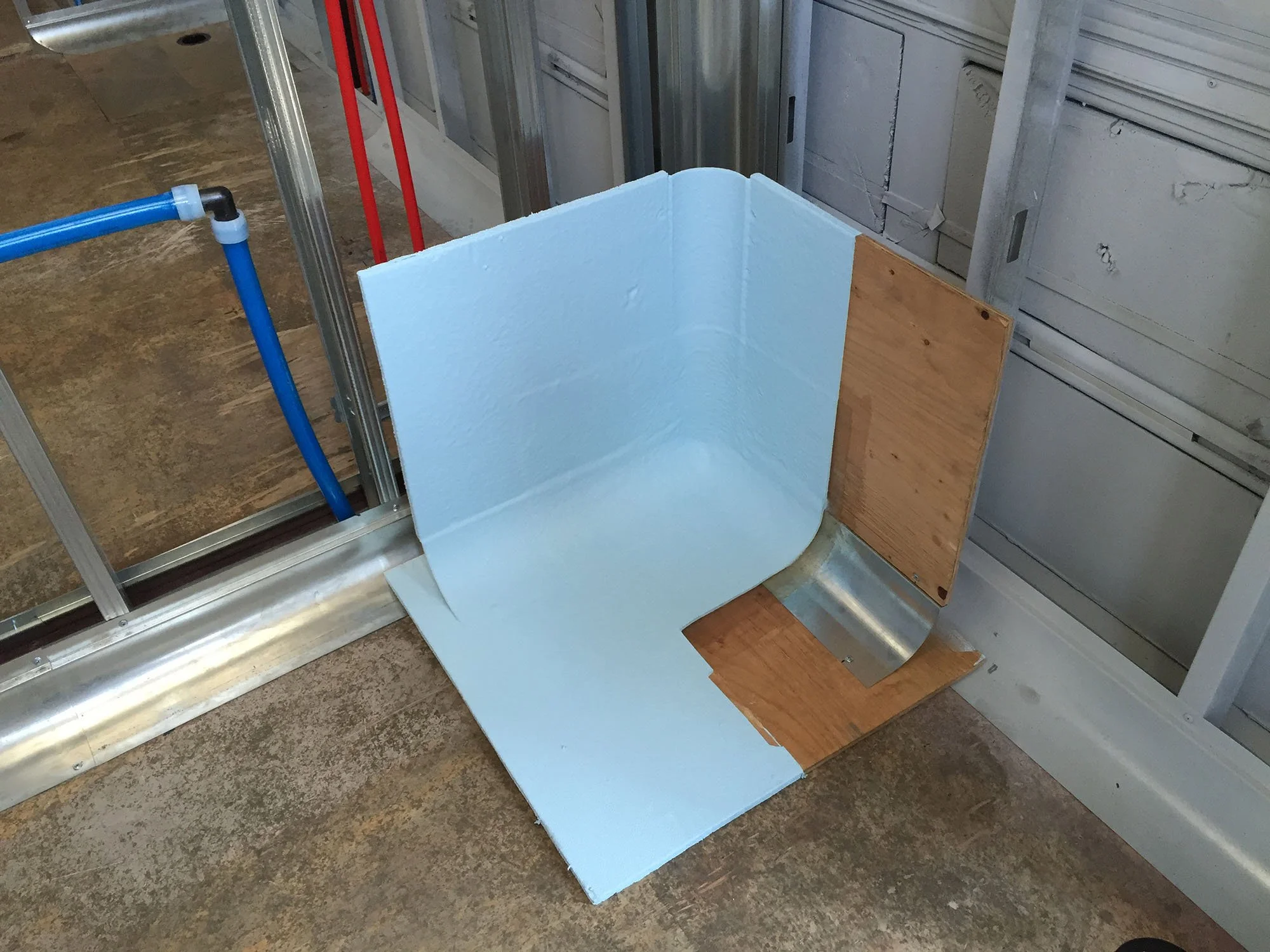

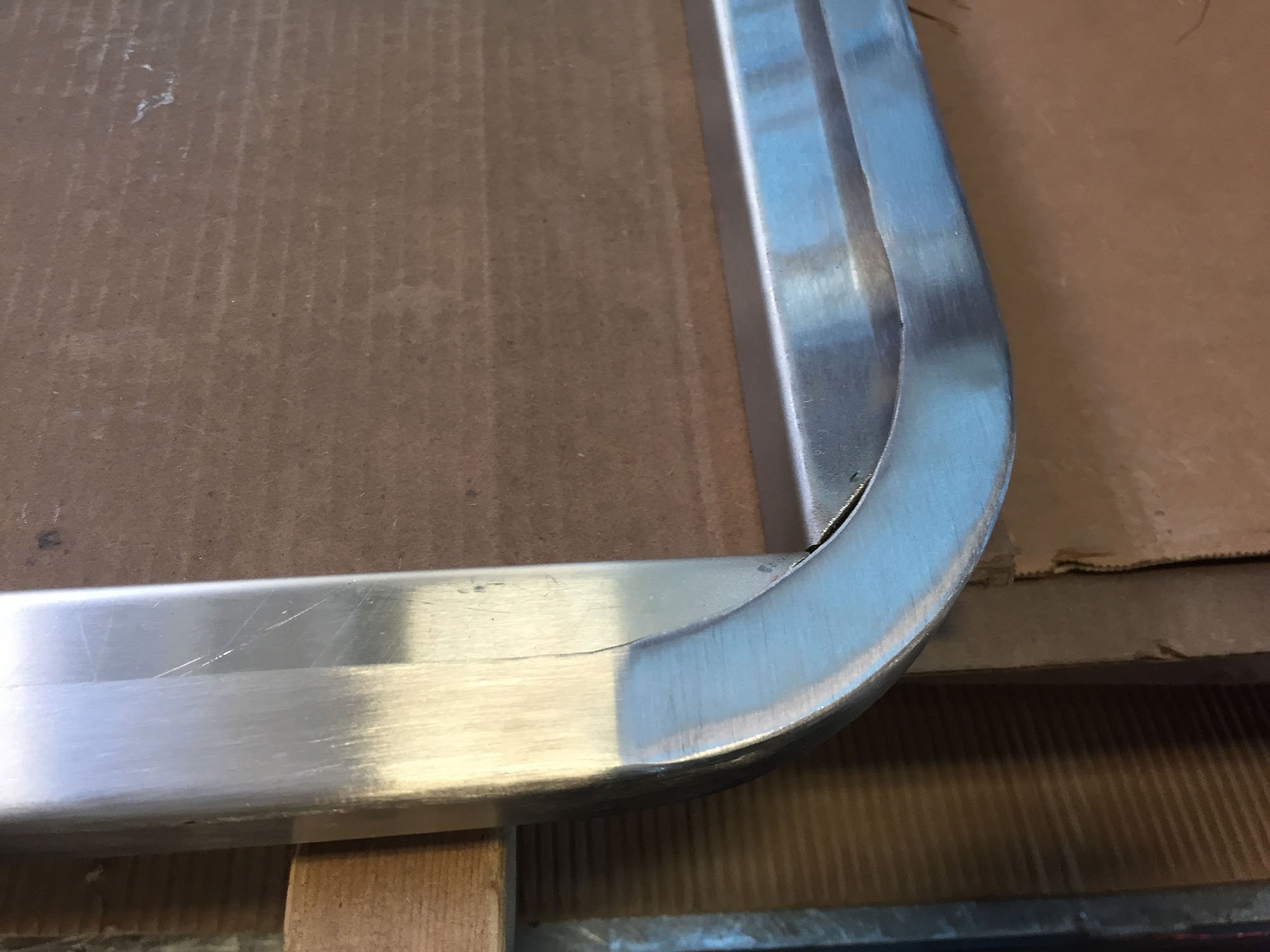

With modest means, we focused on the combined effects of natural light, color and sound to create an immersive and soothing environment. For privacy, bus windows are obscured and natural light is sourced from large polycarbonate skylights created by penetrating the structural frame of the bus. Walls, floors and ceilings are coved at their edges to create pod-like environments.

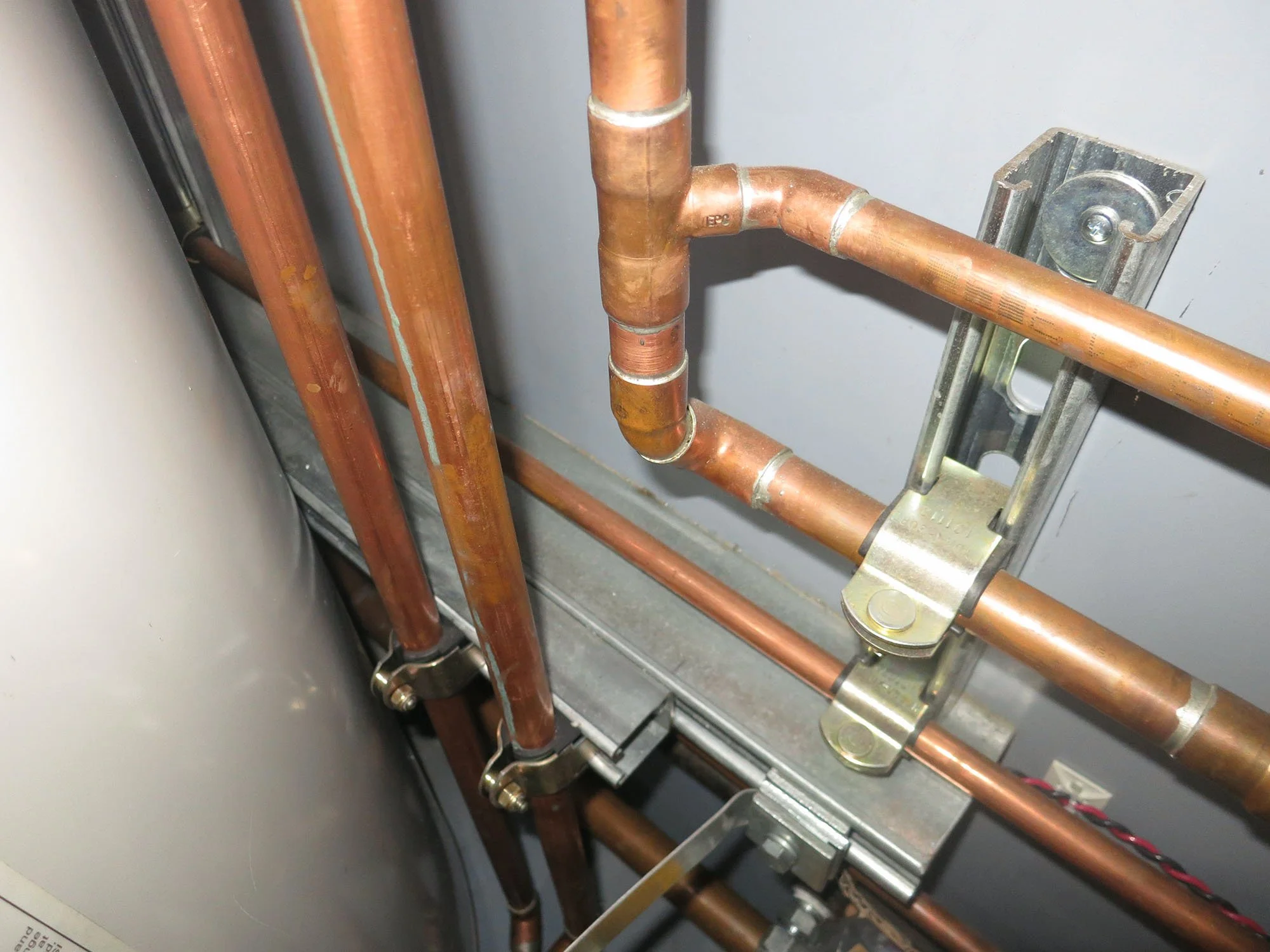

The pod is then coated with a custom blue epoxy truck bed liner which creates a visually soft and calming ambiance that further enhanced by the conveyance of classical music. Water is sourced from fire hydrants and heated by a propane boiler. Black and graywater are recycled to maximum extent possible.
SOCIAL IMPACT

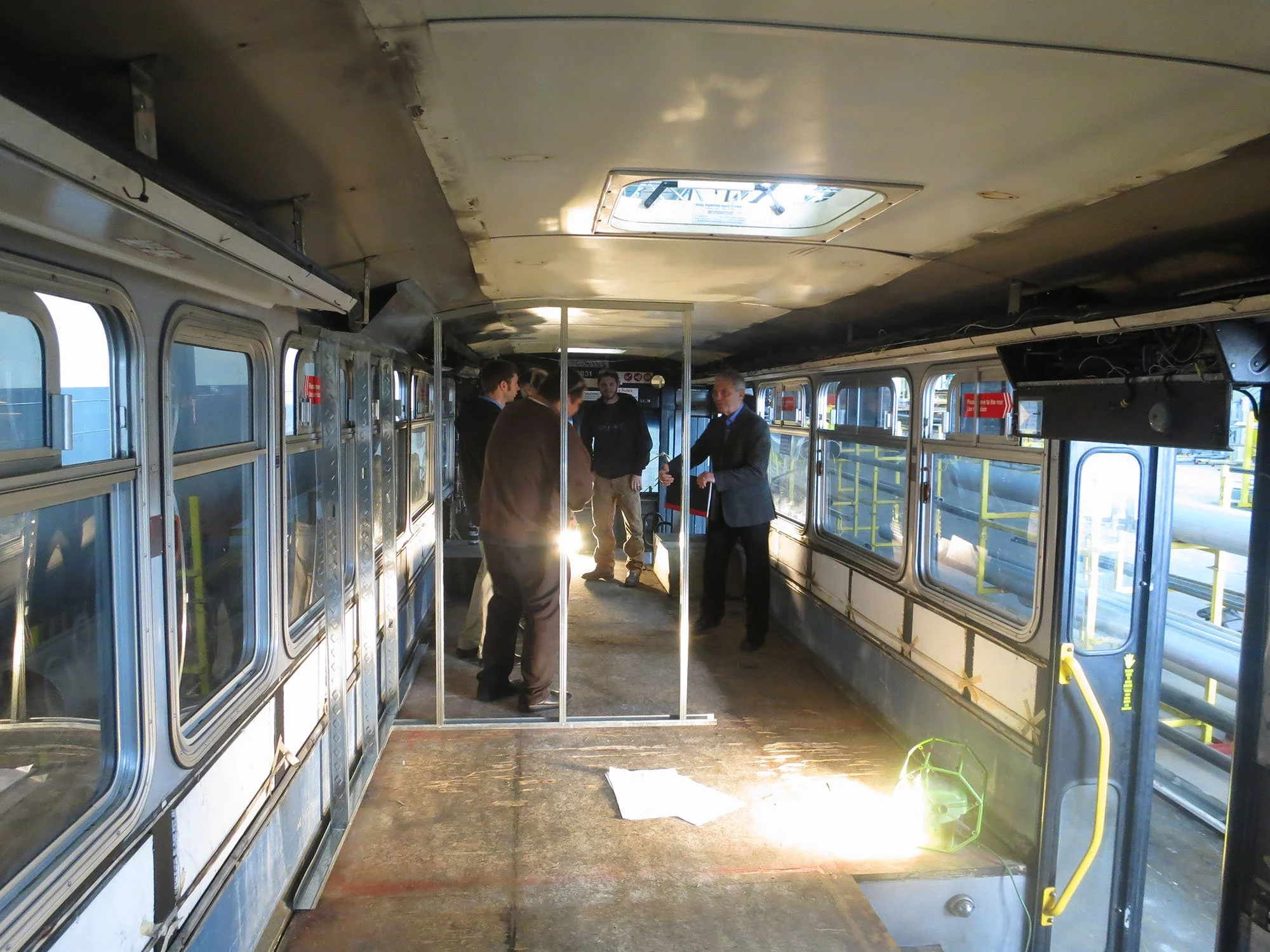

CONSTRUCTION PROCESS
TEAM
Studio Terpeluk
Architect
Lava Mae
Organization
Doniece Sandoval
Founder
Airco Mechanical, Inc
Engineering
Cesar Rubio
Photo Credits
Yon Sim
Photo Credits
